SP5-RMS
Remote Mount Scanner for SPRINT/NEXTEL iDEN Falcon phones

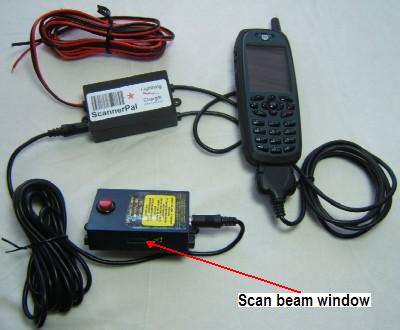

Components -- Mount Illustration -- Pedestal Mount

  • Self-contained and complete system, powered by our standard fixed-mount phone charge/scan interface module.  (Lightning Charge upgrade available.) Simply connect the red wire to +12v, the black wire to ground, mount components, plug in cables, and start scanning.

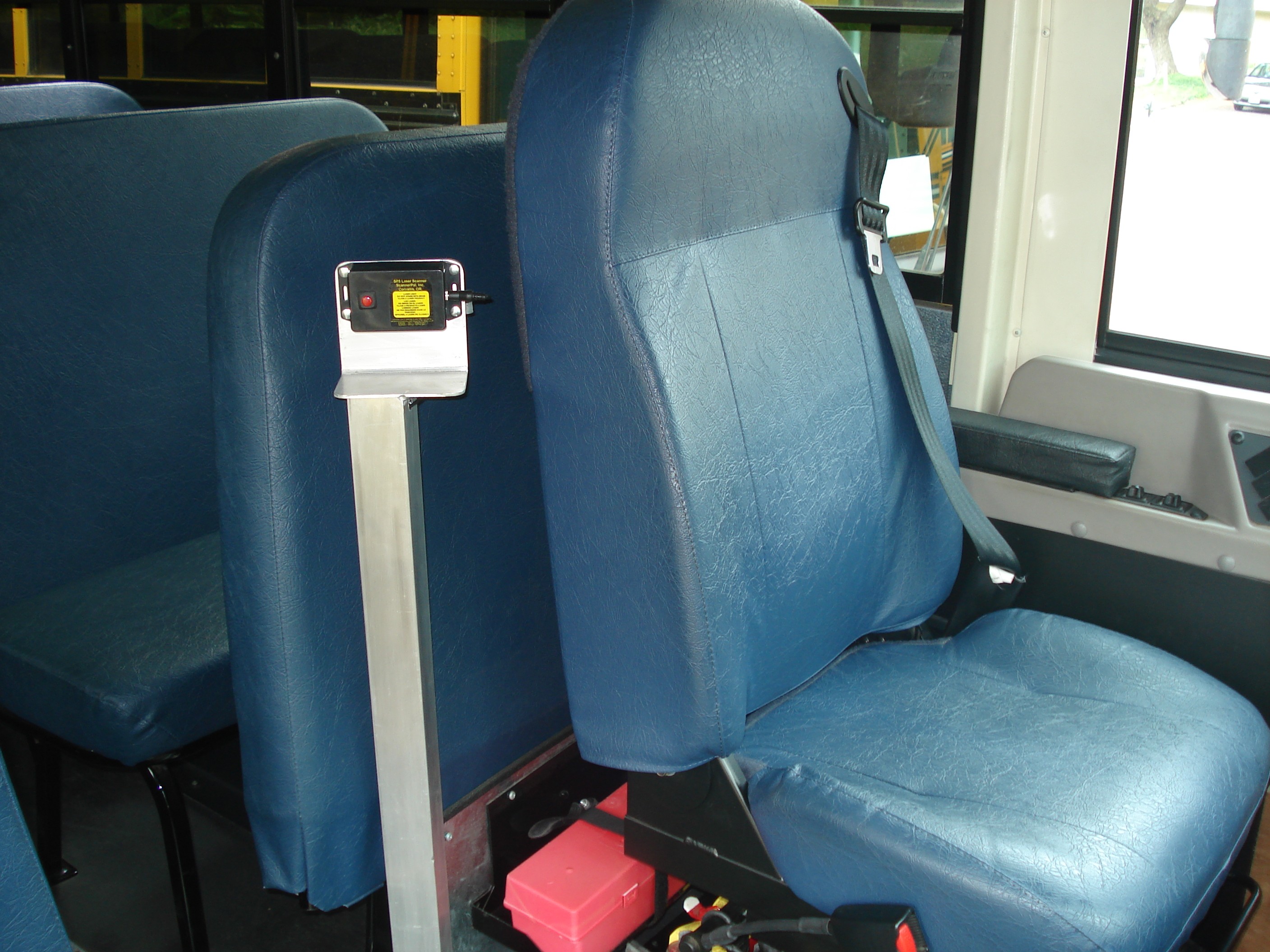

  • Scanner module can be positioned up to 25' away from phone.  It has built-in tabs to make it easy to mount to a bulkhead, wall, dashboard, or pedestal.  (Pedestal shown was fabricated by a district's bus shop.)
  • Press the button to scan, or configure it for no-hands continuous scanning.
  • Uses our SP5 high-performance laser scanning engine.
  • Included 5' scan module connector cable can be easily extended using standard 3.5mm patch or extension cables.

The ScannerPal SP5-RMS scanning system is a simple, flexible, and cost effective scan solution with many uses.  A few examples: Mounted in school buses for student tracking; in vehicles for package tracking or passenger ticketing; on a kiosk for time-clock, customer service/price-check, and event gate tracking.
