ScannerPal SP3 Assembly Instructions

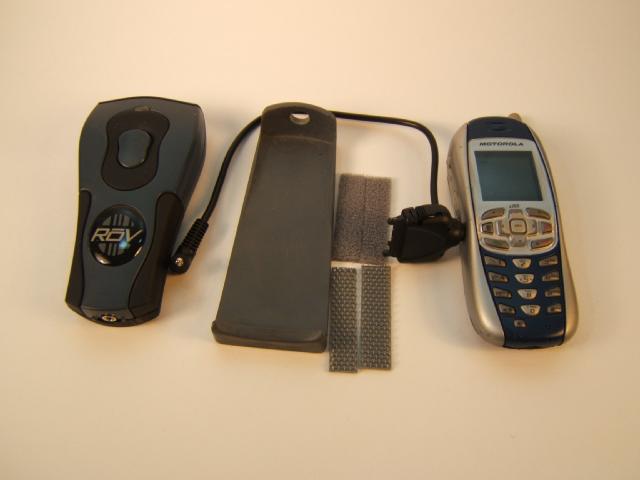

Components, left to right:

- ROV Scanner
- Scanner Plug (Nylon screw for Bluetooth version)
- Sled and "Extreme" Velcro strips
 -Phone Plug (tethered version) - Phone

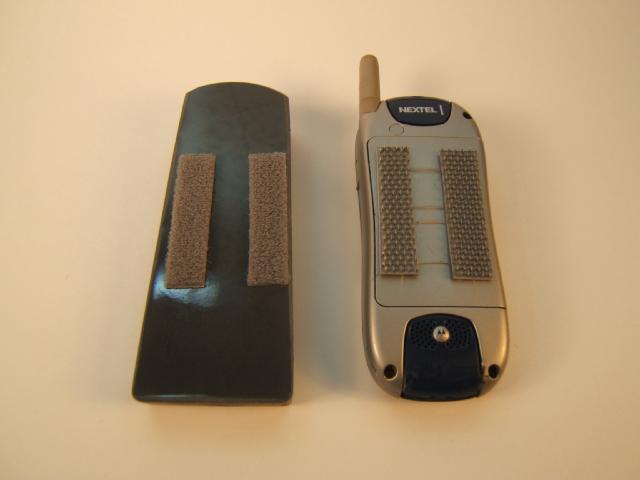

Attach the "Extreme Velcro" strips to bottom of Sled and Phone



The Sled is designed with spring-tension to hold the connector securely in place.
Squeeze the Sled and ROV Scanner together to align the holes, then:

* Tethered version: Push plug firmly and fully into the ROV and place cable in space between the Sled and Phone.
* Bluetooth version: Use a screwdriver to screw the #6 x .5" nylon screw in.

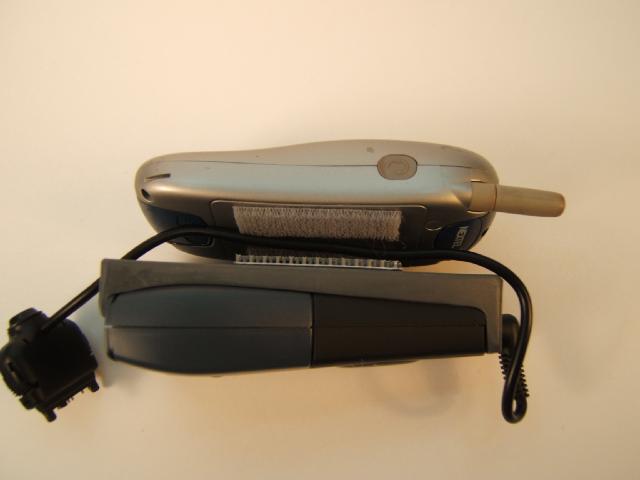

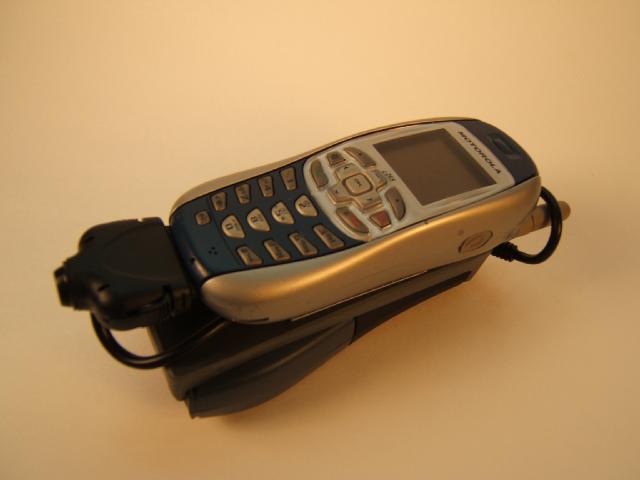

Assembled SP3 system, tethered version shown
