New Product Showcase:

Preview our SP5-365 scanner for the new Nextel i365 phone

The SP5-365 continues the tradition of ruggedness and high performance pioneered by our SP5-355 scanner, and it comes with a similar leather case.  Reserve your place in our production schedule today!


Lightning Charger

(Provisional Patent -
US 61/070,373)

Automatically turns phone on/off with ignition switch!

Avoids rundown of handset/vehicle batteries when parked.

Your J2ME application will now always start up when the driver starts the vehicle.

(Configurable delays for warm-up and short stops.)

SP5  Technical Specifications

 Physical Characteristics

Dimensions Max ht 2.5 inches. Max width 2 5/16 inches. When attached, adds 1.75 inches to total length of i355, 1 inch to other model handsets.
Weight 1.9 ounces
Symbologies
Symbologies marked with "*" are optional.

Symbologies are easily enabled or disabled by scanning in special command bar codes.

How to print bar codes

UPC-A
UPC-E
UPC-E1
EAN-8
EAN-13
 *Bookland EAN
 *UPC/EAN Supplementals
Code 128
UCC/EAN-128
ISBT 128
Code 39
 *Trioptic Code 39
 *Code 39 Full ASCII
Interleaved 2 of 5
 *Code 93
 *Code 11
 *Discrete 2 of 5
 *Chinese 2 of 5
 *Codabar
 *MSI
 *RSS-14
 *RSS-Limited
 *RSS-Expanded

Performance Characteristics

Scan Rate:

104 scans/second ± 12 scans/second (bi-directional)

Scan Angle:

47° ± 3° default / 35° ± 3° reduced

Voltage:

3.3v ± 10%; 5v ± 10%

User Environment

Drop Specification:

2000G

Operating Current:

86 ma (typ) / 113 mA (max)

Operating Temp (Chassis):

-4° to 140° F/-20° to 60° C

Ambient Light:

10,000 ft. candles

Decode Zone Typical:

Performance Charts

4mil

1.0 in. - 5.5 in. / 2.54 cm - 13.97 cm

5mil

1.25 in. - 8 in. / 3.18 cm - 20.32 cm

7.5mil

1.5 in. - 13.25 in. / 3.81 cm - 33.66 cm

10mil

1.5 in. - 17.5 in. / 3.81 cm - 44.45 cm

UPC 100%

1.5 in. - 23.5 in. / 3.81 cm - 59.69 cm

15mil

1.5 in. - 29.5 in. / 3.81 cm - 74.93 cm

20mil

1.75 in. - 35.5 in. / 4.45 cm - 90.17 cm

40mil

* - 40 in. / * - 101.6 cm

55mil

* - 55 in. / * - 139.7 cm



(* dependent on width of bar code)

Regulatory

Laser Safety:

IEC 60825

Electrical Safety:

UL 60950, EN/IEC 60950

EMI/RFI:

FCC Part 15 Class B, EN 55024/CISPR 22, AS 3548, VCCI




 Products
SP5

High Performance Laser for
NEXTEL
i355/i365/i265/i415/i615 Handsets


SP3

ROV Scanner for all  NEXTEL
iXXX "Falcon" Series Handsets.

(Also available for Bluetooth phones.)

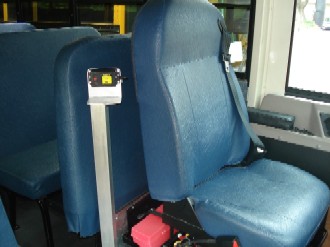

Remote Mount Scanner
